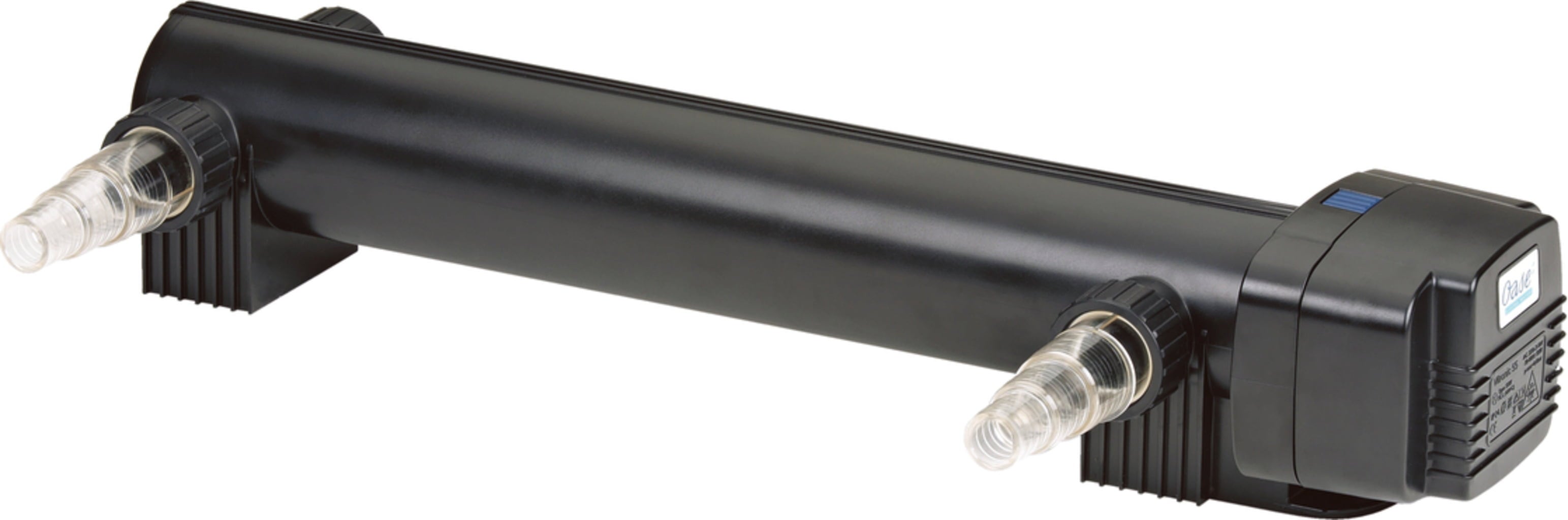

Oase Vitronic Pond UVC, 24 Watt

The Oase Vitronic ensures clear pond water through UVC radiation, and is therefore highly effective against floating algae, bacteria and germs. It can also be combined with almost all commercially available filters.

Product features

- Elimination of floating algae (green water)
- Decimation of harmful bacteria and germs
- Optical function control of the UVC lamp
- Quick fastener for easy lamp replacement and for cleaning the quartz glass
- Direct mounting on the BioSmart filter (Vitronic 18-36 W only)
- High quality workmanship with impact-resistant plastic housing
- Easy installation thanks to extensive connection accessories
- Incl. high quality UVC illuminant
- 100% safety against eye damage

Technical data 11 watts:

• Dimensions (LxWxH): 330 x 120 x 100 mm
• Nominal voltage: 230 V / 50 Hz
• Power consumption: 14 watts
• Power cable length: 3 meters
• UVC power: 11 watts
• Temperature display: No.
• UVC hour meter: No.
• Functional check: optical
• Number of inputs: 1
• Connections input: 19/25/32/38 mm
• Input terminals ^_3/4 ", 1", 1 ^_1/4 ", 1 ^_1/2"
• Number of outputs: 1
• Output connections: 19/25/32/38 mm
• Output connections: ^_3/4 ", 1", 1 ^_1/4 ", 1 ^_1/2"
• Liters per hour max .: 1700 liters
• Maximum operating pressure: 0.5 bar
• Suitable for ponds up to a maximum of 10 m ³
• Suitable for ponds with fish stock: 5 m ³
• Suitable for ponds with koi: 2.5 m ³

Technical data 18 watts:

• Dimensions (LxWxH): 529 x 186 x 130 mm
• Nominal voltage: 220-240 V / 50/60 Hz
• Power consumption: 18 watts
• Power cable length: 5 meters
• UVC power: 18 watts
• Temperature display: No.
• UVC hour meter: No.
• Functional check: optical
• Number of inputs: 1
• Connections input: 25/32/38 mm
• Input terminals: 1 ", 1 ^_1/4", 1 ^_1/2 "
• Number of outputs: 2
• Output connections: 25/32/38 mm
• Output connections: 1 ", 1 ^_1/4", 1 ^_1/2 "
• Max liters per hour: 3500 liters
• Maximum operating pressure: 0.6 bar
• Suitable for ponds up to max .: 20 m ³
• Suitable for ponds with fish stock: 10 m ³
• Suitable for ponds with koi: 5 m ³
• Connection to: BioSmart 18000/36000, BioTec ScreenMatic ² 40 - 60000

Technical data 24 watts:

• Dimensions (LxWxH): 529 x 186 x 130 mm
• Nominal voltage: 220-240 V / 50/60 Hz
• Power consumption: 24 watts
• Power cable length: 5 meters
• UVC power: 24 watts
• Temperature display: No.
• UVC hour meter: No.
• Functional check: optical
• Number of inputs: 1
• Connections input: 25/32/38 mm
• Input terminals: 1 ", 1 ^_1/4", 1 ^_1/2 "
• Number of outputs: 2
• Output connections: 25/32/38 mm
• Output connections: 1 ", 1 ^_1/4", 1 ^_1/2 "
• Max liters per hour: 4500 liters
• Maximum operating pressure: 0.6 bar
• Suitable for ponds up to max .: 25 m ³
• Suitable for ponds with fish stock: 12.5 m ³
• Suitable for ponds with koi: 6.5 m ³
• Connection to: BioSmart 18000/36000, BioTec ScreenMatic ² 40 - 60000

Technical data 36 watts:

• Dimensions (LxWxH): 529 x 186 x 130 mm
• Nominal voltage: 220-240 V / 50/60 Hz
• Power consumption: 36 watts
• Power cable length: 5 meters
• UVC power: 36 watts
• Temperature display: No.
• UVC hour meter: No.
• Functional check: optical
• Number of inputs: 1
• Connections input: 25/32/38 mm
• Input terminals: 1 ", 1 ^_1/4", 1 ^_1/2 "
• Number of outputs: 2
• Output connections: 25/32/38 mm
• Output connections: 1 ", 1 ^_1/4", 1 ^_1/2 "
• Liters per hour max .: 6000 liters
• Maximum operating pressure: 0.6 bar
• Suitable for ponds up to max .: 40 m ³
• Suitable for ponds with fish stock: 20 m ³
• Suitable for ponds with koi: 10 m ³
• Connection to: BioSmart 18000/36000, BioTec ScreenMatic ² 40 - 60000

Technical data 55 watts:

• Dimensions (LxWxH): 660 x 155 x 130 mm
• Nominal voltage: 220-240 V / 50/60 Hz
• Power consumption: 55 watts
• Power cable length: 5 meters
• UVC power: 55 watts
• Temperature display: No.
• UVC hour meter: No.
• Functional check: optical
• Number of inputs: 2
• Connections input: 25/32/38 mm
• Input terminals: 1 ", 1 ^_1/4", 1 ^_1/2 "
• Number of outputs: 1
• Output connections: 25/32/38 mm
• Output connections: 1 ", 1 ^_1/4", 1 ^_1/2 "
• Max liters per hour: 8500 liters
• Maximum operating pressure: 0.6 bar
• Suitable for ponds up to max .: 60 m ³
• Suitable for ponds with fish stock: 30 m ³
• Suitable for ponds with koi: 15 m ³
